| Production Information |
| Item Name |
- Kinugawa TD06H – R32/R33/R34
|
| Application |
- Nissan R32 Skyline GTS-T with RB20DET
- Nissan R33 Skyline GTS-T with RB25DET
- Nissan R34 Skyline GT-T with RB25DET
|
| Spec |
- Compressor wheel 20G (Inducer/Exducer): 52.5 / 68 mm
- Compressor wheel 60-1 (Inducer/Exducer): 60 / 76 mm
- Compressor wheel 25G (Inducer/Exducer): 60.2 / 78 mm (3″ Inlet Only)
- Turbine Wheel (Inducer/Exducer): 49.1 / 56 mm (TD05H)
|
| Bearing/CoolingSystem |
- Journal bearing system (performance thrust bearing kit)
- Oil and water cooled
|
| Compressor Housing |
- Compressor Inlet: Stock 2.4″ or 3″ Anti-Surge (Aftermarket Intake Required)
- Compressor Outlet: 51mm / 2”
|
| Turbine Housing |
- Turbine Housing Size: 8cm/.57 or 10cm/.73
- Turbine Inlet: T3
- Turbine Outlet: Nisan 6-Bolt
|
| Boost/HP |
- Max Hp: 300~450HP
- Boost limited: 2.8Bar
- Suggested boost: 1.5Bar
|
| Actuator Options(If Required) |
- Billet adjustable single port
- Billet adjustable dual port
- NEW heavy duty billet adjustable dual port (larger diaphragm, reservoir and springs with quick adjust collar)
- Pressure options: 0.3, 0.5, 0.8, 1.0 (default), 1.2, 1.5, 1.7, 2.0, 2.5 Bar
|
| Kit includes |

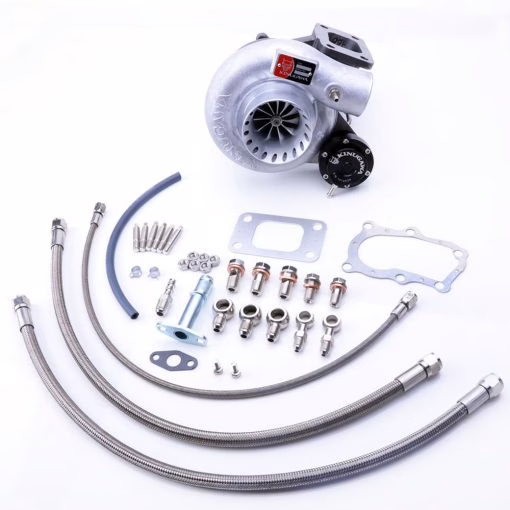

- Universal Nissan fitting kit as pictured (Additional fittings and hoses may be required)
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
