| Production Information |
| Item Name |
- Kinugawa TD06H – S13/S14/S15
|
| Application |
- Nissan S13 with SR20DET Silvia
- Nissan S14 with SR20DET Silvia
- Nissan S15 with SR20DET Silvia
|
| Spec |
- Compressor wheel 20G (Inducer/Exducer): 52.5 / 68 mm
- Compressor wheel 60-1 (Inducer/Exducer): 60 / 76 mm
- Compressor wheel 25G (Inducer/Exducer): 60.2 / 78 mm (3″ Inlet Only)
- Turbine Wheel (Inducer/Exducer): 58.8 / 67 mm (TD06H)
|
| Bearing/CoolingSystem |
- Journal bearing system (performance thrust bearing kit)
- Oil and water cooled
|
| Compressor Housing |
- Compressor Inlet: Stock 2-Bolt or 3″ Anti-Surge (Aftermarket Intake Required)
|
| Turbine Housing |
- Turbine Housing Size: 8cm/.57
- Turbine Inlet: T25
- Turbine Outlet: 5-Bolt
|
| Boost/HP |
- Max Hp: 350~420HP
- Boost limited: 2.8Bar
- Suggested boost: 1.5Bar
|
| Actuator Options(If Required) |
- Billet adjustable single port
- Billet adjustable dual port
- NEW heavy duty billet adjustable dual port (larger diaphragm, reservoir and springs with quick adjust collar)
- Pressure options: 0.3, 0.5, 0.8, 1.0 (default), 1.2, 1.5, 1.7, 2.0, 2.5 Bar
|
| Kit includes |
- Kinugawa TD06H – S13/S14/S15

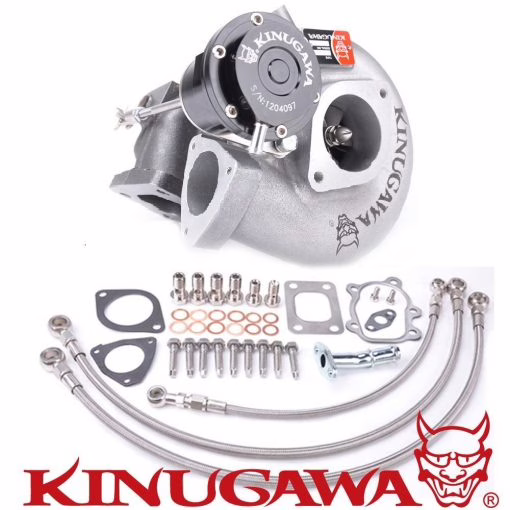

- Universal Nissan fitting kit as pictured (Additional fittings and hoses may be required)
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
