| Production Information |
| Item Name |
|
| Application |
- Mitsubishi Lancer Evolution 1-3
- Mitsubishi Galant VR4
|
| Spec |
- Compressor Wheel 16KX (Inducer/Exducer) : 49.5 / 68.0 mm
- Compressor Wheel G25-660 (Inducer/Exducer) : 54.0 / 67.0 mm
- Compressor Wheel 18KX (Inducer/Exducer) : 55.0 / 75.0 mm
- Compressor Wheel 60-1 (Inducer/Exducer) : 59.5 / 76.0 mm
- Turbine Wheel (Inducer/Exducer): 61.0mm / 54.1mm (TF06)
|
| Wheel Spec |
- Compressor wheel: Billet 7+7 blades Point Milling (KX), Billet 9+0 blades Point Milling (G25)
- Turbine Wheel: High flow Light Weight 9 Blades
- Max boost to 5.0bar
|
| Bearing/Cooling System |
- Journal Bearing with 360-degree performance thrust bearing kit
- Oil and water cooled
|
| Compressor Housing |
- Compressor Inlet: 2.4″, 3.0″* and 3″ Anti-Surge* (*Aftermarket Intake Required)
- Compressor Outlet: Stock 2-Bolt or 2″* (*Aftermarket Piping Required)
|
| Turbine Housing |
- Turbine Housing Size: 7cm with 34mm Wastegate Flapper
- Turbine Inlet: Mitsubishi Single-Scroll
- Turbine Outlet: Mitsubishi 4-Bolt
|
| Actuator Options |
- Billet adjustable single port
- Billet adjustable dual port
- NEW heavy duty billet adjustable single or dual port (larger diaphragm, reservoir and springs with quick adjust collar)
- Pressure options: 0.3, 0.5, 0.8, 1.0 (default), 1.2, 1.5, 1.7, 2.0, 2.5 Bar
|
| Kit includes |

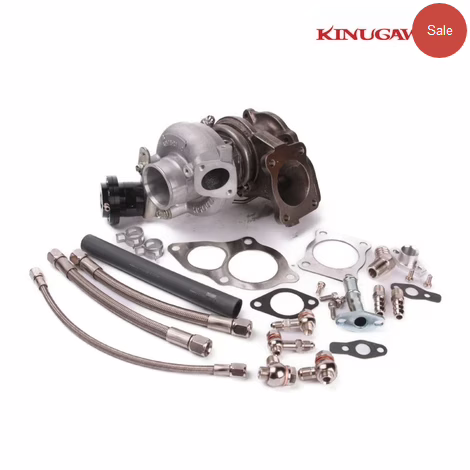

- Kinugawa TF06 Turbo – Evo 1-3/VR4
- Universal Mitsubishi fitting kit as pictured (Additional fittings and hoses may be required)
|
| Made By |
|
| Warranty |
|
Please note, due to the number of turbo configurations, and a large variety of fitting kits, Kinugawa orders are custom made to order (please allow 7-10 working days)
